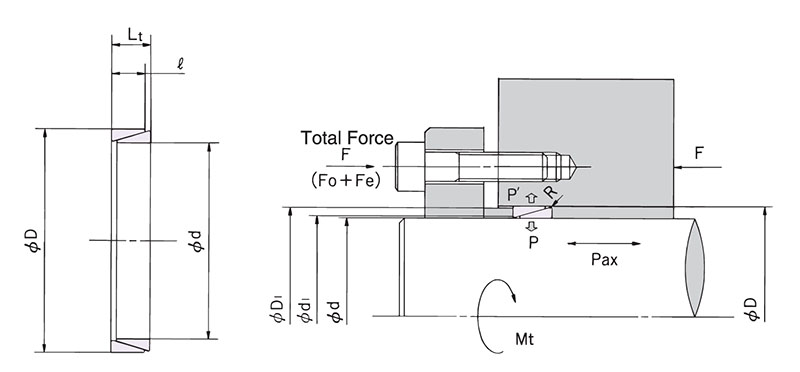

N.º de artículo |
d - Diámetro exterior del eje |
D - Diámetro interior del cubo contador |
Lt |
l |
Fuerza de carga previa |
Fuerza de bloqueo real |
---|---|---|---|---|---|---|
PL010X013 E | N/D 0.394 in | N/D 0.512 in | N/D 0.177 in | N/D 0.146 in | N/D 1320 lb | N/D 1386 lb |
PL011X014 E | N/D 0.433 in | N/D 0.551 in | N/D 0.177 in | N/D 0.146 in | N/D 1217 lb | N/D 1518 lb |
PL012X015 E | N/D 0.472 in | N/D 0.591 in | N/D 0.177 in | N/D 0.146 in | N/D 1122 lb | N/D 1650 lb |
PL013X016 E | N/D 0.512 in | N/D 0.630 in | N/D 0.177 in | N/D 0.146 in | N/D 1056 lb | N/D 1804 lb |
PL014X018 E | N/D 0.551 in | N/D 0.709 in | N/D 0.248 in | N/D 0.209 in | N/D 1826 lb | N/D 2772 lb |
PL015X019 E | N/D 0.591 in | N/D 0.748 in | N/D 0.248 in | N/D 0.209 in | N/D 2310 lb | N/D 2970 lb |
PL016X020 E | N/D 0.630 in | N/D 0.787 in | N/D 0.248 in | N/D 0.209 in | N/D 2200 lb | N/D 3168 lb |
PL017X021 E | N/D 0.669 in | N/D 0.827 in | N/D 0.248 in | N/D 0.209 in | N/D 2068 lb | N/D 3366 lb |
PL018X022 E | N/D 0.709 in | N/D 0.866 in | N/D 0.248 in | N/D 0.209 in | N/D 2002 lb | N/D 3564 lb |
PL019X024 E | N/D 0.748 in | N/D 0.945 in | N/D 0.248 in | N/D 0.209 in | N/D 2772 lb | N/D 3762 lb |
PL020X025 E | N/D 0.787 in | N/D 0.984 in | N/D 0.248 in | N/D 0.209 in | N/D 2662 lb | N/D 3960 lb |
PL022X026 E | N/D 0.866 in | N/D 1.024 in | N/D 0.248 in | N/D 0.209 in | N/D 2002 lb | N/D 4356 lb |
PL024X028 E | N/D 0.945 in | N/D 1.102 in | N/D 0.248 in | N/D 0.209 in | N/D 1848 lb | N/D 4752 lb |
PL025X030 E | N/D 0.984 in | N/D 1.181 in | N/D 0.248 in | N/D 0.209 in | N/D 2178 lb | N/D 4950 lb |
PL028X032 E | N/D 1.102 in | N/D 1.260 in | N/D 0.248 in | N/D 0.209 in | N/D 1606 lb | N/D 5544 lb |
PL030X035 E | N/D 1.181 in | N/D 1.378 in | N/D 0.248 in | N/D 0.209 in | N/D 1870 lb | N/D 5940 lb |
PL032X036 E | N/D 1.260 in | N/D 1.417 in | N/D 0.248 in | N/D 0.209 in | N/D 1738 lb | N/D 6336 lb |
PL035X040 E | N/D 1.378 in | N/D 1.575 in | N/D 0.276 in | N/D 0.236 in | N/D 2222 lb | N/D 7832 lb |
PL036X042 E | N/D 1.417 in | N/D 1.654 in | N/D 0.276 in | N/D 0.236 in | N/D 2552 lb | N/D 8052 lb |
PL038X044 E | N/D 1.496 in | N/D 1.732 in | N/D 0.276 in | N/D 0.236 in | N/D 2442 lb | N/D 8514 lb |
PL040X045 E | N/D 1.575 in | N/D 1.772 in | N/D 0.315 in | N/D 0.260 in | N/D 3036 lb | N/D 9900 lb |
PL042X048 E | N/D 1.654 in | N/D 1.890 in | N/D 0.315 in | N/D 0.260 in | N/D 3432 lb | N/D 10340 lb |
PL045X052 E | N/D 1.772 in | N/D 2.047 in | N/D 0.394 in | N/D 0.339 in | N/D 5742 lb | N/D 14520 lb |
PL048X055 E | N/D 1.890 in | N/D 2.165 in | N/D 0.394 in | N/D 0.339 in | N/D 5412 lb | N/D 15400 lb |
PL050X057 E | N/D 1.968 in | N/D 2.244 in | N/D 0.394 in | N/D 0.339 in | N/D 5214 lb | N/D 16060 lb |
