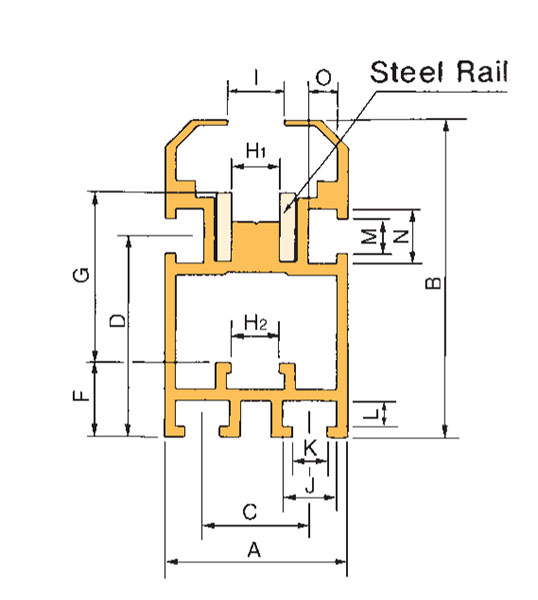

Standard and Steel Rail Inserts (For DOUBLE PLUS "VR," "VRP," "VR-SC," & "VRP-SC").
The steel rail is fixed to the frame with bolts.
The steel rail is fixed to the frame with bolts.
Unidad de medida
A |
N/D 1.380 in |
B |
N/D 2.360 in |
C |
N/D 0.807 in |
D |
N/D 1.494 in |
F |
N/D 0.550 in |
G |
N/D 1.268 in |
H1 |
N/D 0.350 in |
H2 |
N/D 0.366 in |
I |
N/D 0.390 in |
J |
N/D 0.413 in |
K |
N/D 0.256 in |
L |
N/D 0.197 in |
M |
N/D 0.256 in |
N |
N/D 0.413 in |
O |
N/D 0.197 in |
Longitud estándar |
N/D 9.840 ft |
