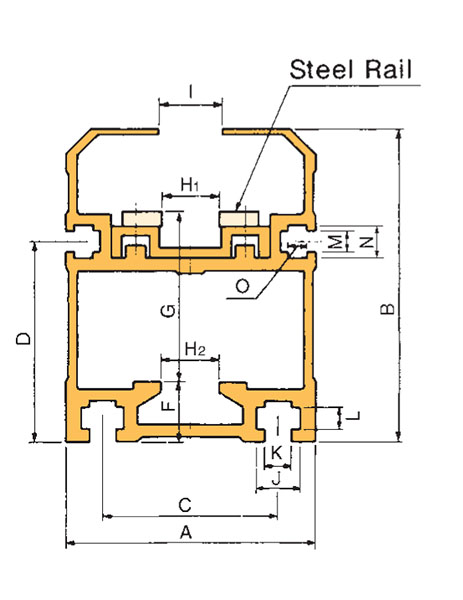

Standard and Steel Rail Inserts (For DOUBLE PLUS "VR," "VRP," "VR-SC," & "VRP-SC").
The steel rail is fixed to the frame with bolts.
The steel rail is fixed to the frame with bolts.
Unidade de medida
A |
N/A 3.940 pol. |
B |
N/A 4.920 pol. |
C |
N/A 2.760 pol. |
D |
N/A 3.150 pol. |
E |
N/A 0.470 pol. |
F |
N/A 0.940 pol. |
G |
N/A 2.680 pol. |
H1 |
N/A 0.910 pol. |
H2 |
N/A 0.910 pol. |
I |
N/A 0.980 pol. |
J |
N/A 0.689 pol. |
K |
N/A 0.413 pol. |
L |
N/A 0.350 pol. |
M |
N/A 0.335 pol. |
N |
N/A 0.531 pol. |
O |
N/A 0.295 pol. |
Comprimento padrão |
N/A 9.840 pé |
