TSS Series Cam Clutch is designed for press fit installation with outside dimensions the same as the 62 Series ball bearing. As a sprag clutch, higher torque capacities are often higher than a similar ramp & roller design. This design provides easy handling and installation, most often with a Series 62 ball bearing located next to the TSS Cam Clutch. The TSS Series is ideal for applications that require high speed inner race overrunning in a very compact package.
Unidad de medida

Especificaciones

Código universal de producto (UPC)

N/D 097039257765

Tamaño de diámetro interior

N/D 0.591 in15.00 mm

Capacidad de torque

N/D 16.2 lb·ft22.0 N·m

Sobremarcha máx. del anillo interior

N/D 3500 r. p. m.

Sobremarcha máx. del anillo exterior

N/D 1800 r. p. m.

Torque de arrastre

N/D 0.007 lb·ft0.01 N·m

Chavetero

N/D 5 mm × 1,2 mm

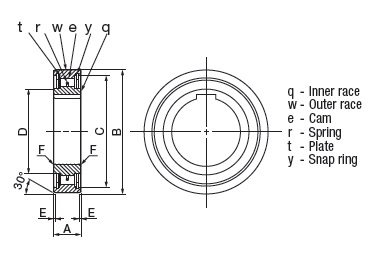

A (Ancho total)

N/D 0.433 in11.00 mm

B (Diámetro total)

N/D 1.378 in35.00 mm

C (Diámetro interior del anillo exterior)

N/D 1.260 in32.00 mm

D (Diámetro interior del anillo interior)

N/D 0.811 in20.60 mm

E (Compensación)

N/D 0.024 in0.60 mm

F (Bisel)

N/D 0.024 in0.60 mm

Peso

N/D 0.086 lb0.039 kg
