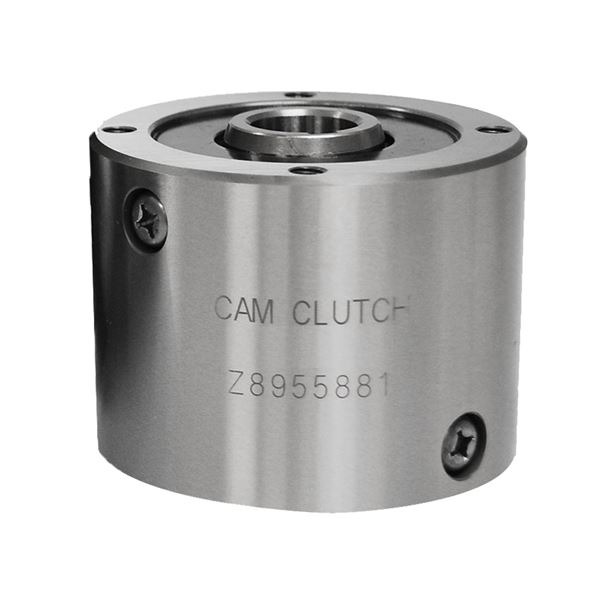

MGUS Series Cam Clutch products are designed to satisfy inner or outer race overrunning/general application requirements. Depending on application requirements, the MGUS Series can be used in overrunning, indexing, or backstopping applications. This series is offered in both metric and inch based inner race configurations. MGUS Series units can easily be mated to pulleys, gears, or sprockets.
Note: When placing an order for MGUS Series Cam Clutch model MGUS750 and above, please inform TSUBAKI of the overrunning speed you use.
Note: When placing an order for MGUS Series Cam Clutch model MGUS750 and above, please inform TSUBAKI of the overrunning speed you use.
Unidad de medida
Especificaciones
Código universal de producto (UPC) |
N/D 097039251435 |
Tamaño de diámetro interior |
N/D 0.590 in15.00 mm |
Capacidad de torque |
N/D 231.6 lb·ft314.0 N·m |
Sobremarcha máx. del anillo interior |
N/D 2800 r. p. m. |
Sobremarcha máx. del anillo exterior |
N/D 900 r. p. m. |
Torque de arrastre |
N/D 0.170 lb·ft0.23 N·m |
Chaveta del diámetro interior |
N/D 5 mm × 2,3 mm |

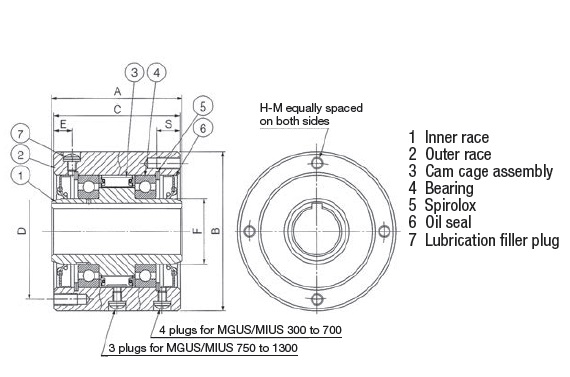

A (Ancho total) |
N/D 2.500 in63.50 mm |
B (Diámetro total) |
N/D 0.20 in3.000/2.998 in5.00 mm76.20/76.15 mm |
C (Longitud del anillo interior) |
N/D 2.380 in60.45 mm |
D (Diámetro del círculo del paso) |
N/D 2.625 in66.67 mm |
E - (Longitud del embrague de leva) |
N/D 0.409 in10.40 mm |
F (Longitud del depósito) |
N/D 1.122 in28.50 mm |
S |
N/D 0.512 in13.00 mm |
H Cant. de orificios roscados |
N/D 4 |
Rosca M |
N/D 1/4-28 |
Tapón del llenador de aceite |
N/D M6 x P1.0 |
Capacidad de aceite |
N/D 0.85 oz25 ml |
Peso |
N/D 1.800 kg3.968 lb |
