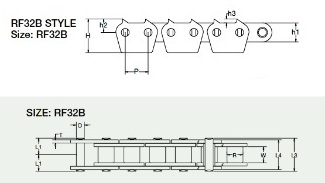

2 straight points on every second pitch & extended flat side bar
Unidade de medida
P - Pitch |
N/A 2,000 pol. |
R - Roller Diameter |
N/A 1,150 pol. |
W - Width Between Inner Link Plates |
N/A 0,900 pol. |
T - Link Plate Thickness |
N/A 0,220 pol. |
T1 - Link Plate Thickness |
N/A 0,220 pol. |
H - Link Plate Height |
N/A 2,953 pol. |
h1- Link Plate Height |
N/A 1,661 pol. |
h2 - Link Plate Height |
N/A 1,181 pol. |
h3 - Link Plate Tooth Height |
N/A 0,807 pol. |
D - Pin Diameter |
N/A 0,701 pol. |
MLP - Middle Link Plate Thickness |
N/A 0,000 pol. |
L2 - Pin Length |
N/A 1,020 pol. |
L1 - Pin Length |
N/A 1,020 pol. |
L1+L2 - Pin Length |
N/A 2,040 pol. |
L3 - Riveted Pin Length |
N/A 2,040 pol. |
L4 - Length Ref. |
N/A 2,040 pol. |
C - Transverse Pitch |
N/A 0,000 pol. |
Approx. Weight |
N/A 0 lb/pé |
