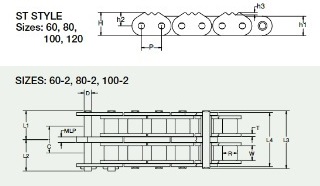

3 straight points on every second pitch
Unidade de medida
P - Pitch |
N/A 0,750 pol. |
R - Roller Diameter |
N/A 0,469 pol. |
W - Width Between Inner Link Plates |
N/A 0,500 pol. |
T - Link Plate Thickness |
N/A 0,094 pol. |
T1 - Link Plate Thickness |
N/A 0,094 pol. |
H - Link Plate Height |
N/A 0,854 pol. |
h1- Link Plate Height |
N/A 0,713 pol. |
h2 - Link Plate Height |
N/A 0,498 pol. |
h3 - Link Plate Tooth Height |
N/A 0,094 pol. |
D - Pin Diameter |
N/A 0,235 pol. |
MLP - Middle Link Plate Thickness |
N/A 0,188 pol. |
L2 - Pin Length |
N/A 1,033 pol. |
L1 - Pin Length |
N/A 0,955 pol. |
L1+L2 - Pin Length |
N/A 1,988 pol. |
L3 - Riveted Pin Length |
N/A 1,910 pol. |
L4 - Length Ref. |
N/A 1,794 pol. |
C - Transverse Pitch |
N/A 0,898 pol. |
Approx. Weight |
N/A 2.28 lb/pé |
