TSS Series Cam Clutch is designed for press fit installation with outside dimensions the same as the 62 Series ball bearing. As a sprag clutch, higher torque capacities are often higher than a similar ramp & roller design. This design provides easy handling and installation, most often with a Series 62 ball bearing located next to the TSS Cam Clutch. The TSS Series is ideal for applications that require high speed inner race overrunning in a very compact package.
Unidade de medida
Especificações
Código UPC |
N/A 097039258021 |
Tamanho do orifício |
N/A 2.362 pol.60.00 mm |
Capacidade de torque |
N/A 478.7 lb·pé649.0 N·m |
Avanço máximo do anel interno |
N/A 910 rpm |
Avanço máximo do anel externo |
N/A 460 rpm |
Torque de arrasto |
N/A 0.243 lb·pé0.33 N·m |
Rasgo de chaveta |
N/A 18 x 2,3 mm |

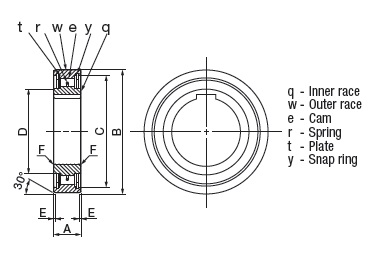

A (Largura total) |
N/A 0.866 pol.22.00 mm |
B (Diâmetro total) |
N/A 4.331 pol.110.00 mm |
C (DI do anel externo) |
N/A 3.937 pol.100.00 mm |
D (DI do anel interno) |
N/A 3.150 pol.80.00 mm |
E (Deslocamento) |
N/A 0.047 pol.1.20 mm |
F (Chanfro) |
N/A 0.059 pol.1.50 mm |
Peso |
N/A 2.090 lb0.950 kg |
