These chains provide a high quality conveying medium for material handling equipment, road building machinery, textile machinery, farming implements, baking, packaging, and bottling equipment.

Sprockets for RS and Double Pitch Roller Conveyor Chain.
There are special sprockets for RS and Double Pitch Roller Conveyor Chains. However, ANSI standard sprockets may be used if the roller is a standard small roller and the number of sprocket teeth is greater than 30. Contact us for details of special sprockets.

  • Attachments can be spaced as desired upon request. For even number of spacing, attachments will be fitted on pin link unless otherwise specified.
  • Spring clip type connecting links will be provided for C2040 - C2060H and C2042 - C2062H.
  • Dimensions O, O1 and G show actual hole diameter.

All dimensions are nominal values and for reference only
Unidade de medida

Especificações

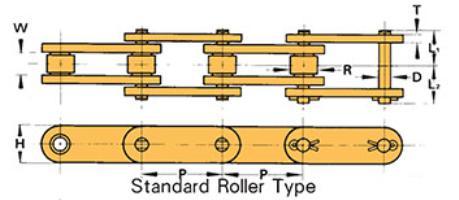

P – Passo

 N/A 4.000 pol.

R – Diâmetro do rolo

 N/A 1.125 pol.

W – Largura entre as placas de conexão de rolo

 N/A 1.250 pol.

Resistência média à tração

 N/A 58000 lb

Carga máxima permitida

 N/A 9190 lb

Nº. de elos a cada 10 pés

 N/A 30

Tipo da corrente

 N/A Rolo padrão

Tipo de barra lateral

 N/A Placas laterais pesadas

Especificações de pinos

D

 N/A 0.562 pol.

L1

 N/A 1.337 pol.

L2

 N/A 1.514 pol.

Placa de conexão

T

 N/A 0.281 pol.

H

 N/A 1.898 pol.
